当前所在位置:首页 >产品中心>激光焊接机

手持式激光焊接机 ——————Handheld laser welding machine

产品特点:

手持式焊接枪替代以前固定光路,对焊接难以接近的部位施行柔性传输非接触焊接,具有更大的灵活性。实现远距离激光焊接,克服工作台行程空间的局限性,为更精密的焊接提供了条件。

The handheld welding gun replaces the fixed optical path before, and flexible transmission non-contact welding is applied to the parts that are difficult to access, so it has greater flexibility. Long-distance laser welding can overcome the limitation of worktable travel space and provide conditions for more precise welding.


详细介绍
视频展示

加工优势

1.手持焊接头轻便灵活,操作方便简易,满足多种角度、多种位置的焊接;

2.手持式焊头可配备5米/10米进口光纤,灵活方便可以实现户外焊接;

3. 采用红外线定位,用于焊接头位置校对和焊接时的位置验证,焊接位置更准确,确保焊缝更美观;

4. 激光焊接深度大, 焊接牢固;

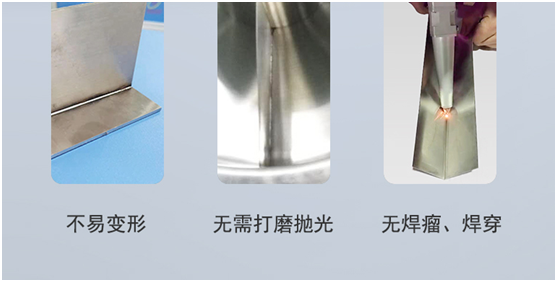

5.不易变形,易打磨抛光,解决了使用氩弧焊出现的焊穿、焊瘤、焊接质量等问题;

6. 也适用各种复杂焊缝, 各种器件的点焊。


ADVANTAGES

1. The hand-held welding gun is portable and flexible, easy to operate, and can meet the requirements of welding at various angles and positions.

2.The hand-held welding gun can equip with 5meters/10meters optical fiber,which is flexible and convenient for outdoor welding.

3. Infrared positioning is used to correct the position of welding joint and verify the position during welding. The welding position is more accurate and the welding seam is more beautiful.

4.The laser welding depth is deep and firm.

5. It is not easy to be deformed, easy to be  polished. The problems of welding penetration, welding nodule and welding quality in argon arc welding are solved.

6. It is also suitable for spot welding of various complex welds and devices.


应用范围

1.   钣金、机箱、水箱的激光焊接

2.   厨卫、洗手盆类五金激光密封焊接

3.   各类五金灯具激光焊接

4.   门窗框架类激光焊接

5.   广告牌、广告字激光焊接


APPLICATIONS

1.    Laser welding of sheet metal, chassis and water tank.

2.    Laser Sealing Welding of Kitchen and Sanitary Hardware.

3.    Laser welding of various kinds of hardware lamps.

4.    Laser welding of door and window frames.

5.    Laser welding of billboard.


技术参数TECHNICAL PARAMETERS

最大功率

Maximum Power

200w

500w

800w

1000w

2000w

激光波长

Laser Wavelength

1.06um

1.06um

1.06um

1.06um

1.06um

焊接频率

Welding Frequency

50Hz

100Hz

100Hz

150Hz

200Hz

焊接深度

Welding Depth

0.1-1.0mm

1.0-2.0mm

2.0mm

2-3mm

4-5mm

脉冲宽度

Pulse Width

0.5-20ms

0.5-20ms

0.5-20ms

0.5-20ms

0.5-20ms

电力输出

Power Output

220v/50Hz

220v/50Hz

220v/50Hz

380v/50Hz

380v/50Hz

冷却方式

Cooling Mode

循环水冷Circulating water cooling

循环水冷Circulating water cooling

循环水冷Circulating water cooling

循环水冷Circulating water cooling

循环水冷Circulating water cooling

定位系统

Positioning System



红光指示

Red light indication

红光指示

Red light indication

红光指示

Red light indication

红光指示

Red light indication

工作方式

Operation Mode

脉冲

Pulse

连续脉冲Continuous pulse

连续脉冲Continuous pulse

连续脉冲Continuous pulse

连续脉冲Continuous pulse

输出光路

Output Optical Path

1-4可选

1-4 Optional

1-4可选

1-4Optional

--

--

--

电流峰值

Peak Current

50-230A

50-500A

--

--

--

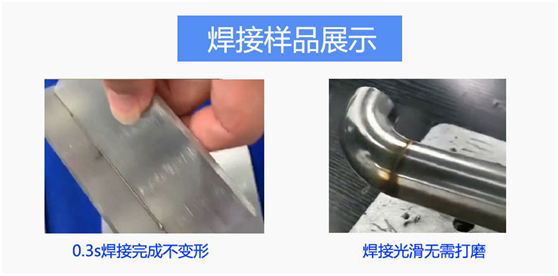

加工效果 EFFECTS
