振镜激光焊接机——————Galvanometer laser welding machine

产品特点:

产品特点
通过内部灵活的光学组合实现分时分能量多工位同时焊接,光纤传输的光束质量更好,光斑细、能量分布均匀,焊点大小均匀,深度一致。


Product features
The internal flexible optical combination can realize simultaneous welding at multiple stations  with dividing time and energy. The beam quality transmitted by optical fiber is better. The spot size is fine, the energy distribution is uniform, the welding spot size is uniform, and the depth is consistent.

详细介绍
视频展示

产品介绍

光纤振镜式激光焊接机,它是将高能激光束耦合进入光纤,距离传输后,通过准直镜准直为平行光, 再聚焦于工件上实施焊接的一种激光焊接设备。电光转换效率高,激光能量闭环反馈控制激光电源,避免了氙灯老化对激光功率的影响,比电流反馈型设备的输出更加稳定,脉冲波形最多可任意设定16段,半导体红光指示定位,能适合各种形状复杂工件的加工,减小对工装夹具的要求。

Product introduction

Optical fiber galvanometer laser welding machine, it is a kind of laser welding equipment which combines high energy laser beam into optical fiber, after distance transmission, collimates into parallel light through collimator, and then focuses on the workpiece for welding. Electro-optic conversion efficiency is high. The closed-loop feedback controls laser power, so as to avoid the xenon lamp aging influence on laser power, output is more stable than current feedback type equipment.  Pulse wave can be set 16 segments, with semiconductor red indicator, it can be suitable for all kinds of complicated shape workpiece processing, reduce the requirement of jig.


应用范围
可用于电子、通讯、五金等行业大批量生产企业的离线/在线焊接。主要应用领域包括手机屏蔽罩、金属手机外壳、金属电容器外壳、硬盘、微电机、传感器以及其他相干产品的高效率激光点焊或密封焊。

Applications

It can be used for electronic, communication, hardware and other industries mass production enterprises offline/online welding. The main application fields include high efficiency laser spot welding or sealing welding of mobile phone shielding, metal mobile phone cover, metal capacitor cover, hard disk, micro-motor, sensor and other related products.


技术参数 Technical parameters:

设备型号 Model

LK-QWF200

LK-QWF300

最大激光输出功率

Max. laser output power

200W

300W

激光类型 Laser type

光纤Optical fiber

Optical fiber

激光波长Laser wavelength

1064um

1064um

脉宽 Pulse width

0.1ms-45ms

0.1ms-45ms

单脉沖最大能

Max. energy of single pulse

80J

120J

脉沖Pulse frequency

100HZ

100Hz

激光焊接深度Welding depth

0.1-1mm

0.1-1mm

激光焊接范围Welding range

200*200mm

200*200mm

范围

Adjusting range of light spot

0-1.8mm

1.8mm

标准工作台最大承载

Max. bearing of standard workbench

25KG

25KG

工作光束重精度

Repeat precision of beam

-0.001

-0.001

工作光束定位精度

Positioning precision of beam

-0.001

-0.001

瞄准定位系统Positioning system

HD-CCD监控系统 Monitoring

HD-CCD监控系统 Monitoring

冷却系统 Cooling system

水冷 Water cooling

水冷 Water cooling

电源额定输出功率

Rated output power

6KW

8KW

整机功率Total power

6KW

8KW

电力需求Power supply

AC220VAC/380VAV+-15%/50HZ/25A

机器外观尺寸Dimension

650*1220*1160mm

650*1220*1160mm

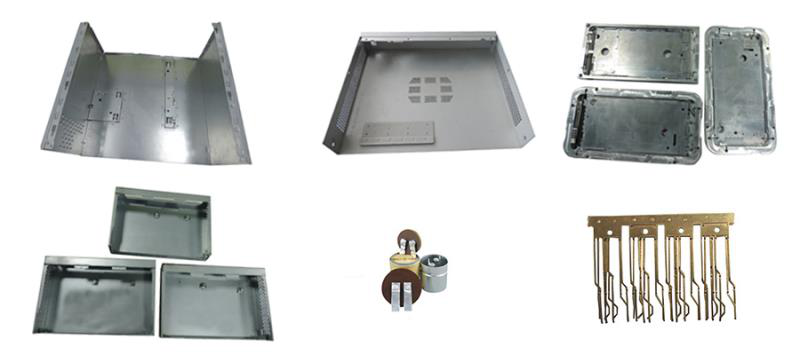

加工效果:
